Product Description：

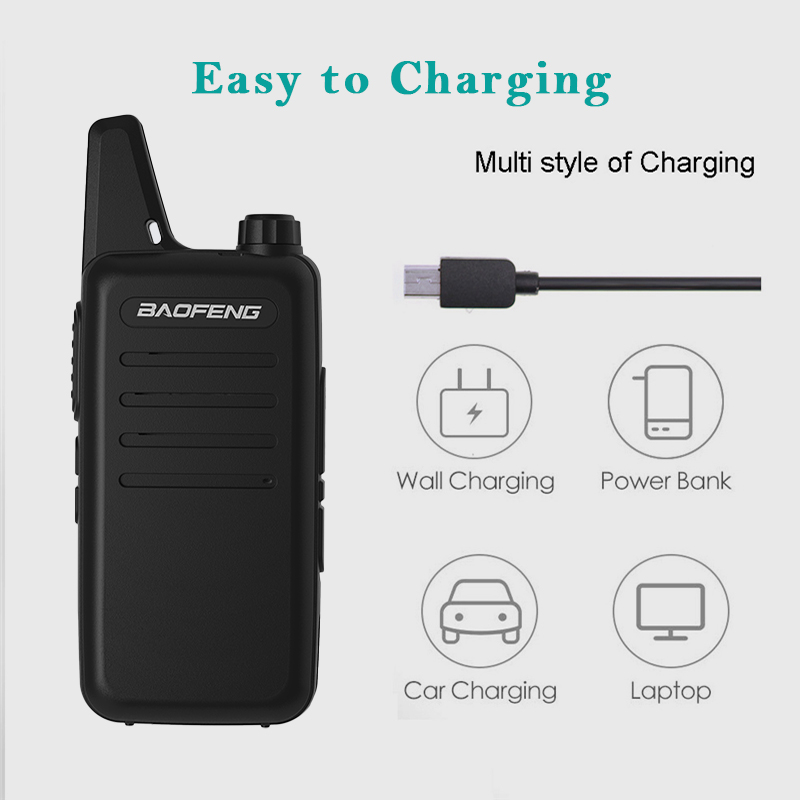

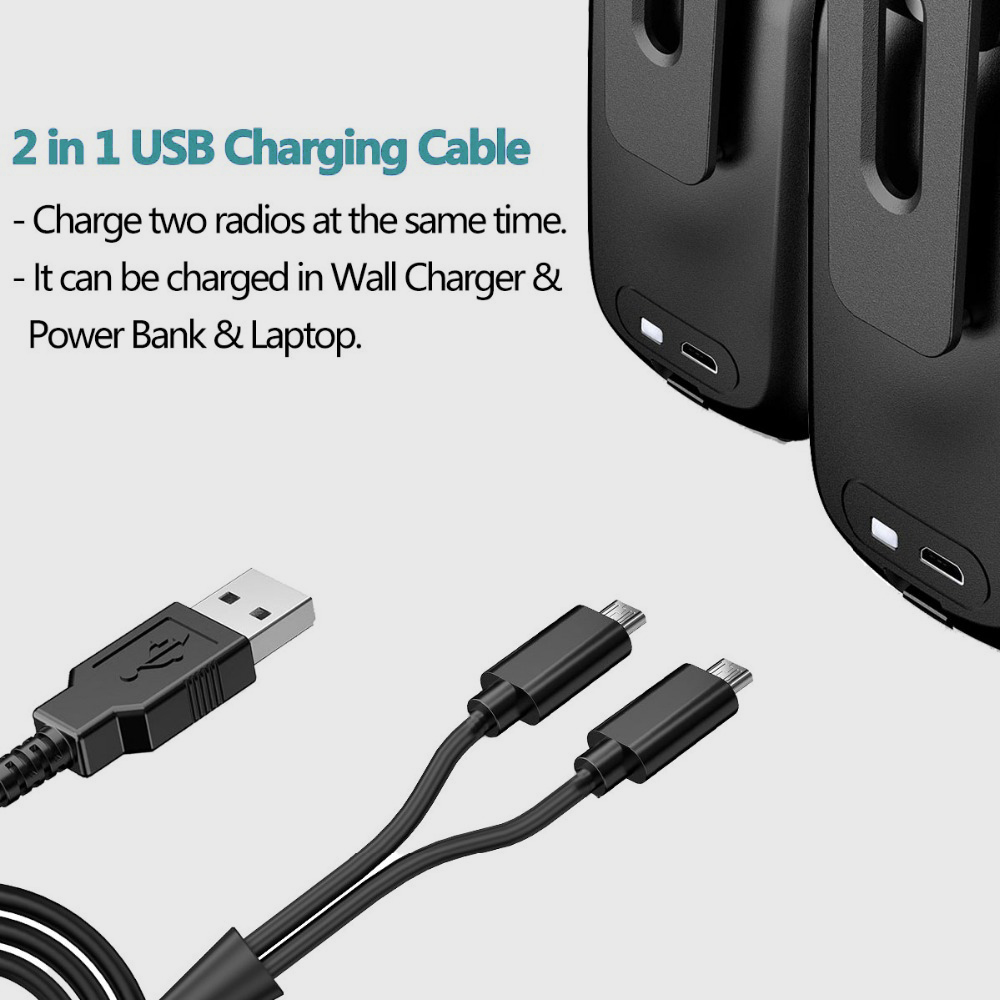

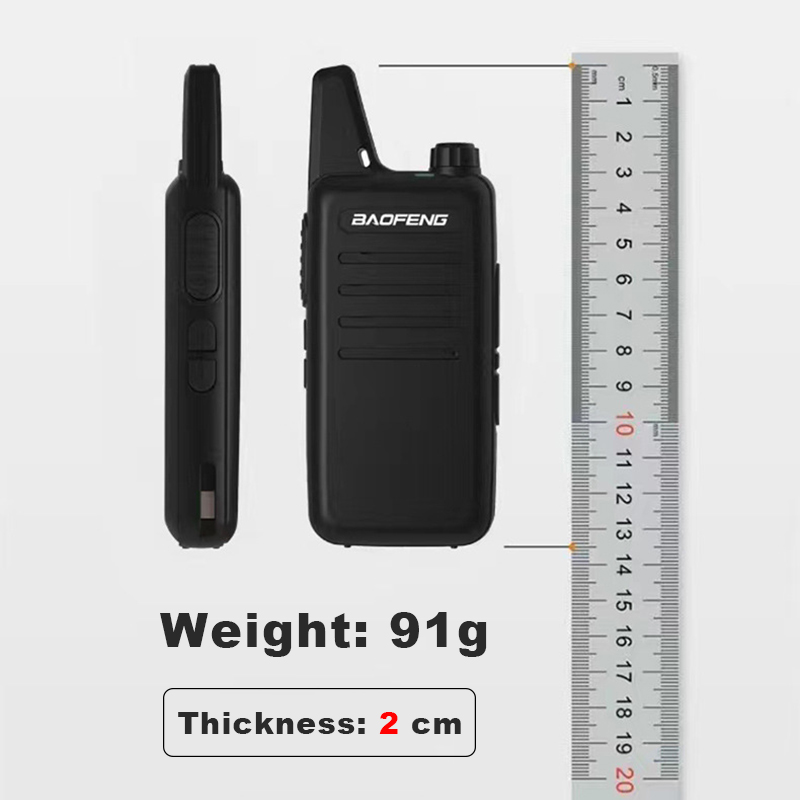

This is a new model, small and easy to carry.Refect sound quality and easy to charging.
Product Characteristics：
VOX
Flashlight
Call end Beep
Keyboard Locks
Output power:0.5W
Technical specification
CTCSS:38(1-38)CDCSS:60(39-99)
Low power warning and power indicator
Channel:Related to various civil frequencies
Screen backlight:Easy to operate at night or in the dark.
Frequency range:According to the civil frequency of each country and region
Data Sheet：
Output Power | 0.5W/2W |
Spurious Power | ≤7.5 µW |
Adjacent channel power | ≤-65dB/≤-60dB |
Audio Distortion | <5 % |
Modulation Sensitivity | 8-12mV |
Transmitting Current | ≤1000mA |
Modulation Mode(W/N Band) | 16KΦF3E/11KΦF3E |
Maximum Frequency Deviation (W/N Band) | ≤5KHz / ≤2.5KHz |
CTSCC/DCS Frequency Deviation(W/N Band) | 0.7±0.1KHz (W), 0.4±0.1KHz (N) |
